Due to the lack of iPhone tools and overall better designs, I really wanted to be able to update my blog when operating from parks, field day, etc. I have moved my blog to WordPress.
The new address is https://ae4rmqrp.worpress.com
Setting Up the KX3 to work with Fldigi and Windows 10 (Part 2)
Welcome Back! Did you get your hardware all set up? Great. Now, lets get to Fldigi and set it up to work with our KX3.
Go ahead and open Fldigi. The first thing we are going to do is set up Rig Control. Click on Configure - Rig Control.
Once there, click on the Hamlib tab. Be sure to check the Use Hamlib check box. Then choose Elecraft K3/KX3 (Beta) for rig. For device use the Com port you discoved your KX3 was using in Part 1. In my case it is Com 5. The rest of my settings are:
Retries - 3
Retry Interval - 600
Write delay - 0
Post write delay - 100
Baud rate - 38400 (that is default for the KX3)
Stopbits - 1
Polling Interval- 250
Mode Delay 200
Sideband - Rig Mode
Then check the following two boxes:
PTT via Hamlib command
Audio on Auxiliary Port
Once you have all that click on Initialize. Once you have done that you should see the frequency readout in Fldigi change to what is on your KX3. If it did not change confirm all your setting, especially the device (com port).
Save the configuration then close.
Now lets configure the sound card. Click on Configure - Soundcard.
Once there click on the Devices tab. Click the Port Audio box. The capture device should be the microphone we identified in Part 1 and the Playback should be the speaker/headphone jack we identified in Part 1 as well. I've left all the other setting at default.
Now, lets test it. Click on the little phone book (Open List). I like to use 14070 most of the time but depending on band conditions you may need to use a different band. So click on 14070 and the KX3 frequency should change to 14070.
If the mode on your radio is not Data, go ahead and press the Data button. Alternatively you can chose PKTUSB from the drop down menu on the left under the frequency. Tweak your volume until you can see some signals and decodes on the left.
Congratulations. You have set up Fldigi to work with your KX3.
If you have any issues, feel free to contact me. I'm good on QRZ.
Go ahead and open Fldigi. The first thing we are going to do is set up Rig Control. Click on Configure - Rig Control.
Once there, click on the Hamlib tab. Be sure to check the Use Hamlib check box. Then choose Elecraft K3/KX3 (Beta) for rig. For device use the Com port you discoved your KX3 was using in Part 1. In my case it is Com 5. The rest of my settings are:
Retries - 3
Retry Interval - 600
Write delay - 0
Post write delay - 100
Baud rate - 38400 (that is default for the KX3)
Stopbits - 1
Polling Interval- 250
Mode Delay 200
Sideband - Rig Mode
Then check the following two boxes:
PTT via Hamlib command
Audio on Auxiliary Port
Once you have all that click on Initialize. Once you have done that you should see the frequency readout in Fldigi change to what is on your KX3. If it did not change confirm all your setting, especially the device (com port).
Save the configuration then close.
Now lets configure the sound card. Click on Configure - Soundcard.
Now, lets test it. Click on the little phone book (Open List). I like to use 14070 most of the time but depending on band conditions you may need to use a different band. So click on 14070 and the KX3 frequency should change to 14070.
If the mode on your radio is not Data, go ahead and press the Data button. Alternatively you can chose PKTUSB from the drop down menu on the left under the frequency. Tweak your volume until you can see some signals and decodes on the left.
Congratulations. You have set up Fldigi to work with your KX3.
If you have any issues, feel free to contact me. I'm good on QRZ.
Setting up the KX3 hardware to work with Fldigi using Windows 10 (Part 1)
Like many of you I wanted to try digital mode with my KX3. The most popular application being Fldigi. Even with my 25 years plus in the IT industry working with various software application, networking and industrial controls I still had quite a bit of problems setting up the radio to work with Fldigi. A recent FaceBook post by a fellow KX3 user who had the same issues I did showed me I was not the only one who had struggles setting this up. Even with a great guide by a fellow ham, K4MTX (see his blog post here), he had the same struggles I did. For that reason, I thought I would put document the steps I took in setting my KX3 up with Fldigi.

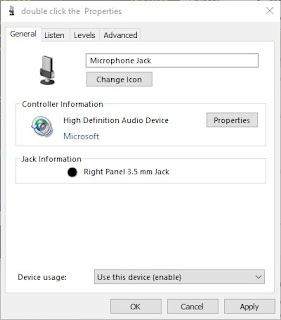

you need do the following. First, locate the headphone/speaker jack and microphone jack on your computer/sound card. This may sound very rudimentary but believe me, its easy to get them mixed up. Next, right click on the speaker icon on the system tray and click on recording devices. You may notice multiple recording devices/microphones. This is what tripped me up. Determine which one is your microphone jack. On most computers when you double click the microphone it will be the one that shows "jack information such as "right panel 3.5 mm jack." To make mine stand out and easy to find, I renamed it Microphone Jack.
Now, again, before you cable anything up you need to turn off the mic bias and mic button. To do this hold down the DISP button and the display should change to the configuration menus. Next, turn the OFS/VFO B knob until the menu changes to MICBIAS. Then use the VFO A know to change the setting to OFF. Then, using the OFS/VFO B knob change the menu to MIC BTN. If using the Elecraft MH3 this should be set to Ptt UP.dn. Use the VFO A knob to change this to OFF. Push the display button to save. If you do not do this you will start transmitting as soon as you plug in the cable to the mic port.
Since I switch over from SSB/CW to digital often I wrote macros to do this for me. You can assign them to the PF1 and PF2 buttons, use the KX3 Utility, or, like I do have them assigned to macros buttons in Win4k3. To go to digital mode i use the following:
MN135;MP000;MN082;MP000;MN255;
To go back to mic mode I use:
MN135;MP016;MN082;MP005;MN255;
Macro programming is outside the scope of this post, but its something you should look into. It can make repetitive tasks much easier.
OK, we can now cable it all up. The cables from Elecraft and marked with a green band and red band. I used the green band to go from the mic jack on the KX3 to the headphone jack of the computer. I then used the red cable to go from the speaker of the KX3 to the mic jack of the computer.
The final step on the KX3 is to put it into DATA A mode. Do this by press the DATA button and then use the OFS/VFO B know to choose DATA A. This is very important. Make sure the filter on the KX3 is set wide open. I have my BW set at 3.0. IF you have it to narrow, you will not receive any data.
This setup should work with most digital modes.
We will go over setting up Fldigi for the KX3 on my next post.
Parks on the Air
One of my new passions is Parks on the Air (POTA). I didn't get a chance to participate in the ARRL's National Parks on the Air (NPOTA). I found out about Parks on the Air on Cale Nelson's Ham Radio 360.
Parks on the Air is part of the World Wide Flora & Fauna. The US parks fall under KFF-WWFF. There are currently over 4,000 sites that can be activated in the US.
My first site I activated was in North Carolina when I visited my daughter, Toni. That gave me the bug and now I'd like to activate more. Last week I activated KFF-1829 - Alafia River State Park. There are 10 parks within an hour drive of my house and I hope to activate most of them this year.
The equipment I use for my activations is:
KX3
7ah SLA Battery (optional)
Headphones
American Morse KK1B Strait Key
LNR 10/20/40 Trail-Friendly antenna or
BuddiPole Antenna
All except the BuddiPole fits into a padded camera backpack to make it very compact.
AE4RM's Blog
This is my home station, most of which doubles as my portable station. If consists of an Elecraft KX3, laptop for logging and digital modes, Yeasu FTM-3200D, MFJ power supply, and MFJ antenna tuner. Home antennas consist of an Alpha-Delta DX-CC and a homemade J-pole for 2 meters and 70 cm on a 30 foot home made tiltable mast (so it can come down during a hurricane). The ball is for Samantha, my German Shepherd Dog who is usually right next to me when I'm on the radio.
My station may be small and I can only run 15 watts max at this point but I have confirmed 111 countries confirmed on LoTW, 103 on phone and 53 on CW.
When I am not operating at home I can now be found doing my new favorite thing - Parks on the Air. But more on that in a different post.
I do operate mainly CW now. I use a Lionel J-36 bug (slowed down with additional weights), a Navy flameproof, and an American Morse KK1B strait key. I also enjoy SSB and work the digital modes - JT65, PSK31, and Winlink RMS Express.
I am a member of the following:
SKCC - 15542T
FISTS - 17946
Flying Pigs - 3783
QCWA - 37324
OMISS - 10396
YLSSB - 17145
SkyWarn - POL-914
QRP ARCI
I am a member of the Lake Wales Radio Amateurs and participate regularly in their monthly QRP day. I also am member of the Lakeland Amateur Radio Club and am active on their repeater.
